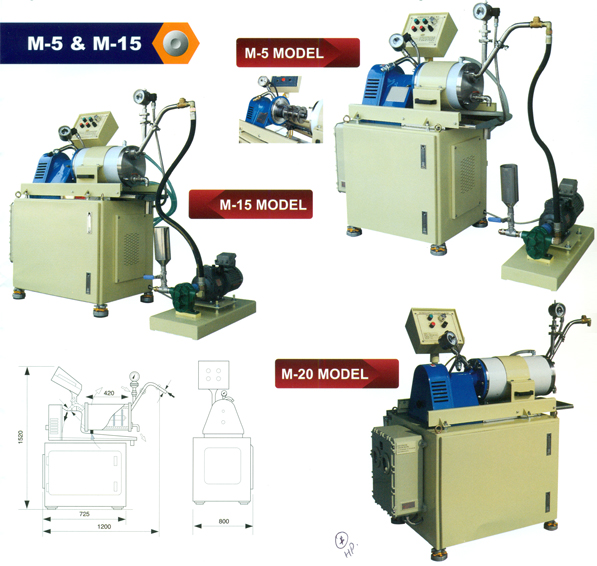

HORIZONTAL TYPE BEAD MILL


(M-5 / M-15 / M-20 / DM -30 / M-45 / M-60)

HORIZONTAL TYPE BEAD MILL

Features


The optimum configuration for every poduct with an extremely wide choice of material for parts wetted choice of materials for parts wetted by the product including hardened and stainless steel, hard chrome-plated stainless steel, polyurethane and engineered cermics
  Wet type of grinding & dispersion mill
  High efficiency - for products ranging from low to high agitator disc made of special alloy
  Good wear and tear resistance - grinding chamber and agitator disc made of special alloy

Easy to use- all type of mill can be taken apart in just a few steps, allowing simple and rapid changover to different mill confirguration
  Simple operation and easy setting of operating parametres
  Grinding bead diameter range of 0.5-3.0 mm
  Low operating and maintenance costs
  Dynamic gap separator - tungsten carbide alloy steel structure for maximum wear resistance
  Choice of seal design to suit your needs.

  Application
*
Paint & Ink Industry
*
Pharmaceutical Industry
*
Food Industry
*
Agricultural and Chemical Industry
*
Pigment & Dyestuf Industry
*
Cosmetic Industry

  Grinding Media
* Chrom Steel bead
* Zirconium silicate bead
* Zirconium oxide bead
* Glass Bead

Disperser

Dia Mill
Aliperser ( Stucco Mixer)
Attritor
High Speed Stirrer
Double Cone Blender
Sigma Kneader
Pug Mixer
Sand Mill
Ribbon Blender
Ball Mill
Liquid Filling Machine
Triple Roll Mill
Filling Machine

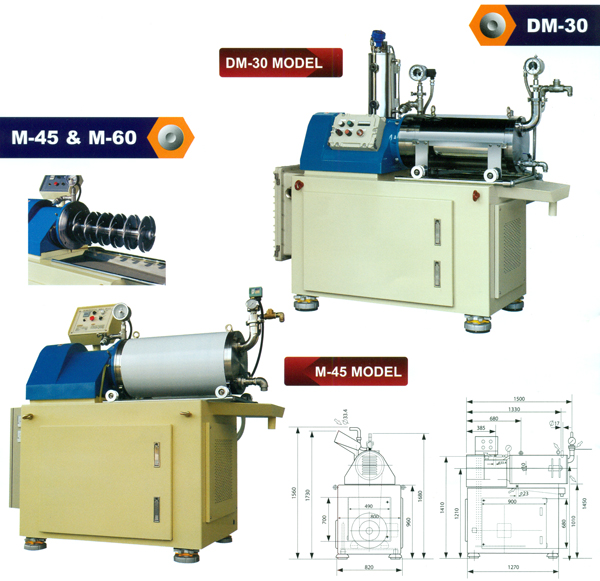

DM-30 MODEL

HORIZONTAL TYPE BEAD MILL

Model
Motor
Power (HP/Kw)
Grinding Chamber
(Volume, L)
Production
Volume
(L/H)
Cooling Water
Consumption
(L/H)
Weight
(Kg)
Dimension
L/w/H
(mm)

S-0.3
2/1.5
0.3
1-20
100-250
40
650/420/450
S-1.4
3/2.2
1.4
1-50
250-400
125
840/610/580
M-5
10/7.5
5
20-150
750-1500
600
1530/850/1590
M-15
20/15
15
50-500
1000-2000
750
1700/850/1630
M-20
25/18
20
60-600
1000-2000
850
1820/940/1630
DM-30
30/22
30
100-1000
2000-3000
1200
1850/1020/1790
M-45
50/38
45
150-1500
2000-3000
1600
1850/1110/1790
M-60
60/45
60
200-2000
2000-4000
1900
2205/1210/1790
* Data provided for reference purpose only, company reserve the right to change or modify any particular without    prior notice.

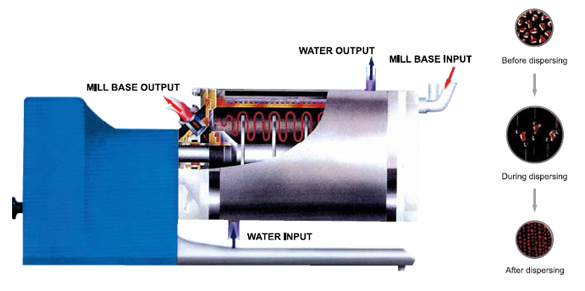

Structure

Horizontal type bead mill structure

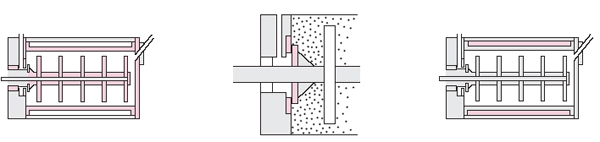

OPERTAONAL PRINCIPLE
Horizontal type bead mill structure

Constructed of high quality material for maximum wear resistance. The Dynamic gap separator is manufactured from extremely hard tungsten carbide alloy steel for maximum wear resistance. High efficiency cooling system.
Horizontal type bead mill structure

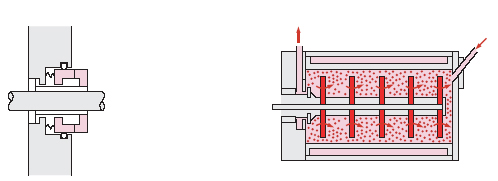

Choice between two kinds of shaft seal to meet customer's requirements.

Specially designed agitator disc ensures superior agitation performance
